Cobra II
Overall conception to match the ISO 24333 standard for grain sampling, our best seller Cobra covers the entire area on a heavy duty & long trailer.
The sample probe head is sliding on a rail fixed on 2 pilars (according to length). It slides with a longitudinal drive, a swivel drive and an up/down gearmotors. They are all controlled with variable frequency drivers for torque boost, but also in order to help trailer bottom detection and adjust penetration force of the probe. For an optimal sample representativity, the probe is twin-walled for an effective core sampling in a bitube concept with airflow. The sample is conveyed with 50mm diameter anti-static & food grade hosing. The vacuum turbine and the electrical enclosure are located either at one pilar or at the laboratory.
Wide sampling radius
Wide sampling radius 3200mm
Modular rail length: 6m, 12m, 15m, 16m, 20m, 24 m and more
Turbines from 1.9kW to 7.5W

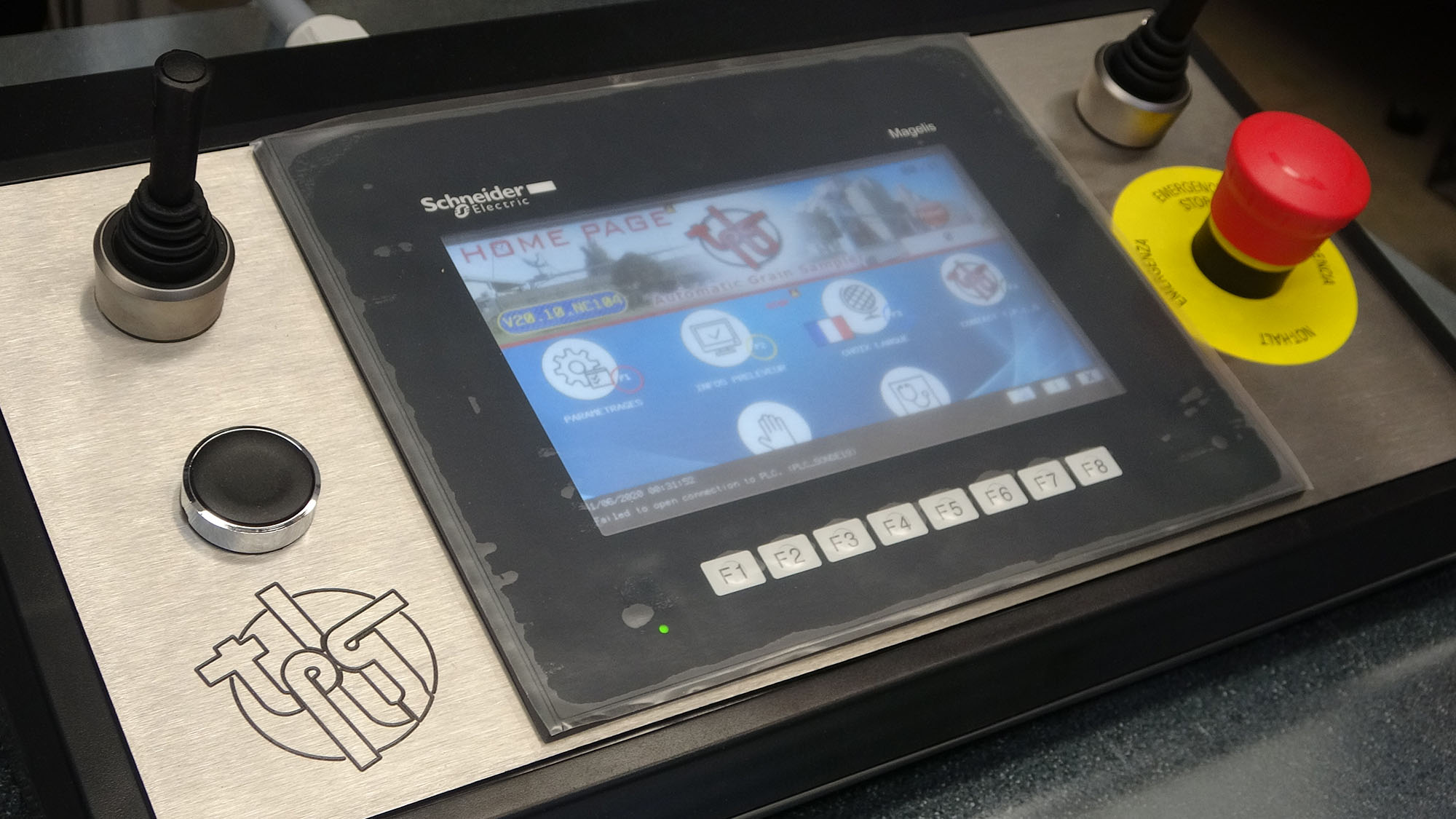

Operation with touchscreen pannel
Sealed grain reception
High sampling speed
Any project ?
Contact us
discover in video
Cobra allows flexibility & rapidity and can be fully automatized. We have unique "à la carte" solutions for the location of the sampler & constrains, but also on the the reception variables. Our "Bureau d'Etudes" works for that purpose to fine tune our standard into tailor-made solutions.
The main variable is the length of the sliding rail to fit sampling zones requirements :
• Cobra 4012, 4016, 4020, 4024 with a 12 or 16 or 20 or 24 meters sliding rail. Could be even more upon request
• Standard or Premium version : Standard has an up/down gearmotor 1,1 kW and warranty 1 year, but Premium has an up/down gearmotor 1,5 kW and enhanced warranty 2 years
• it has options, according to distance for a 2.2 or 4.3 kW turbine, 50 mm diameter hose, at the mast or at the lab.
• it also has automation option upon request, such as 1 to 15 sampling poitns an back to parking, double deck sampling (both sides), etc...
• it comes with standard reception with collection of the sample with a Cyclofiter and acessories.
| STANDARD VERSION | PREMIUM VERSION | |
| Pillar cross-section | 250 mm | 250 mm |
| Swivel drive gearmotor | 0.55 kW | 0.55 kW |
| Longitudinal drive gearmotor | 1.5 kW | 1.5 kW |
| Up/down drive gearmotor | 1.1 kW | 1.5 kW |
| Base plate | 600 x 600 mm | 600 x 600 mm |
| Operating radius | 3,200 mm | 3,200 mm |
| Warranty on mechanical & electrical components | 1 year | 2 years |
| Electric power 2 | 30 VAC N + ph - 3000 SERIES | 400 VAC + N + E 50 Hz - 4000 SERIES |
| Turbine power | 1.9 kW | 1.9 kW to 7.5 kW |
